Toolbox UI

Toolbox UI is a built-in web interface that allows users to visually inspect and test out configured resources such as tools and toolsets.

Launching Toolbox UI

To launch Toolbox’s interactive UI, use the --ui flag.

./toolbox --ui

Toolbox UI will be served from the same host and port as the Toolbox Server, with the /ui suffix. Once Toolbox is launched, the following INFO log with Toolbox UI’s url will be shown:

INFO "Toolbox UI is up and running at: http://localhost:5000/ui"

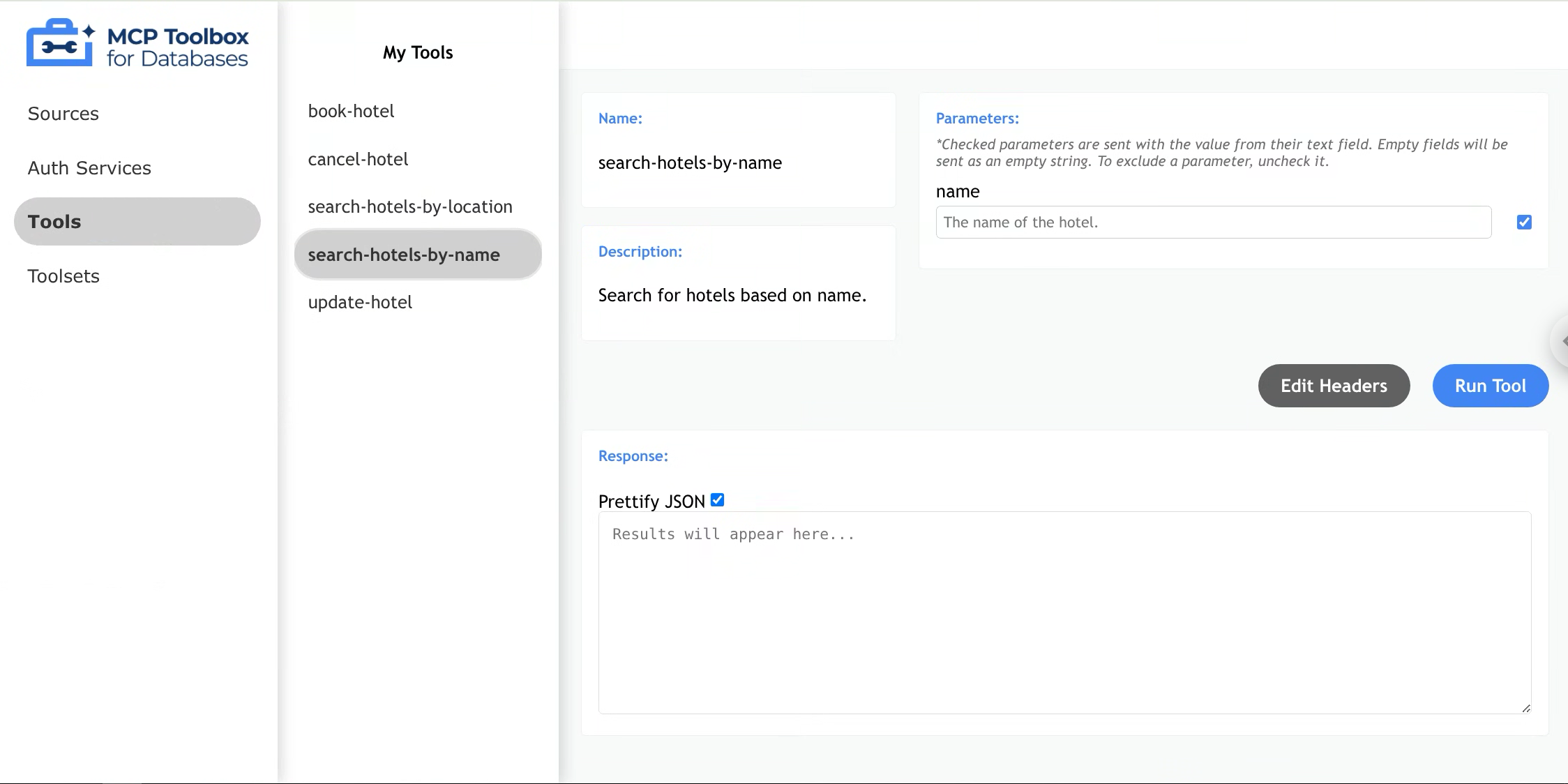

Navigating the Tools Page

The tools page shows all tools loaded from your configuration file. This corresponds to the default toolset (represented by an empty string). Each tool’s name on this page will exactly match its name in the configuration file.

To view details for a specific tool, click on the tool name. The main content area will be populated with the tool name, description, and available parameters.

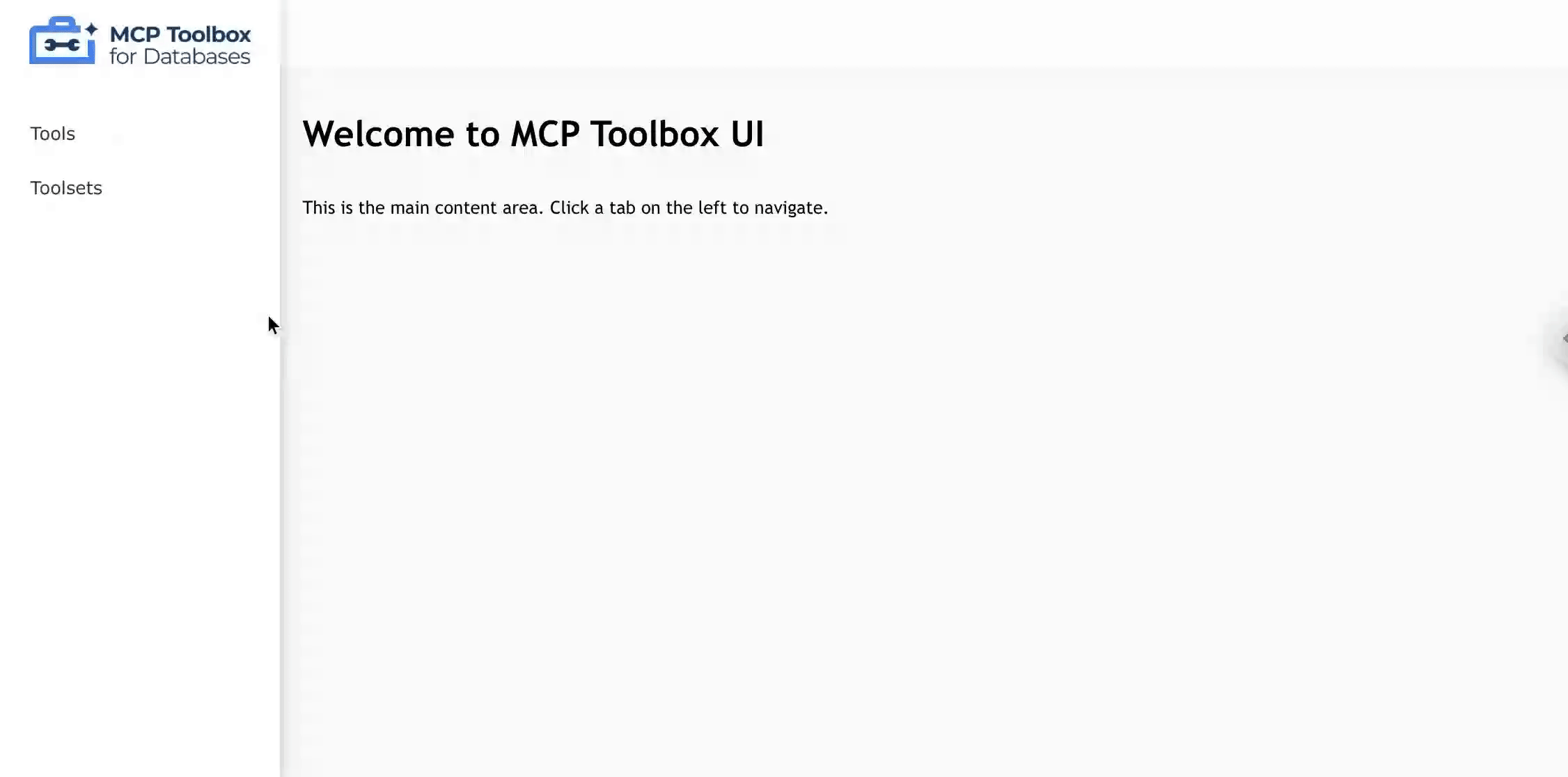

Invoking a Tool

1. Click on a Tool
2. Enter appropriate parameters in each parameter field
3. Click “Run Tool”
4. Done! Your results will appear in the response field
5. (Optional) Uncheck “Prettify JSON” to format the response as plain text

Optional Parameters

Toolbox allows users to add optional parameters with or without a default value.

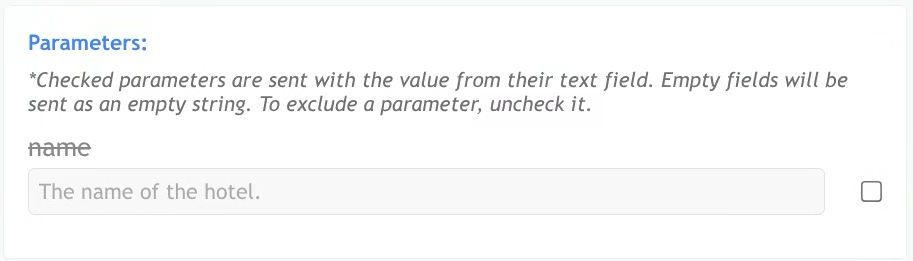

To exclude a parameter, uncheck the box to the right of an associated parameter, and that parameter will not be included in the request body. If the parameter is not sent, Toolbox will either use it as nil value or the default value, if configured. If the parameter is required, Toolbox will throw an error.

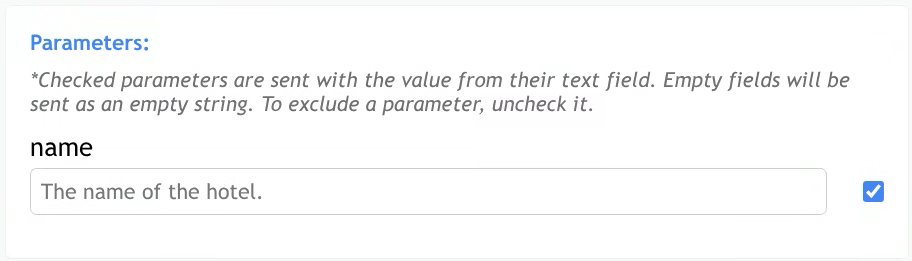

When the box is checked, parameter will be sent exactly as entered in the response field (e.g. empty string).

Editing Headers

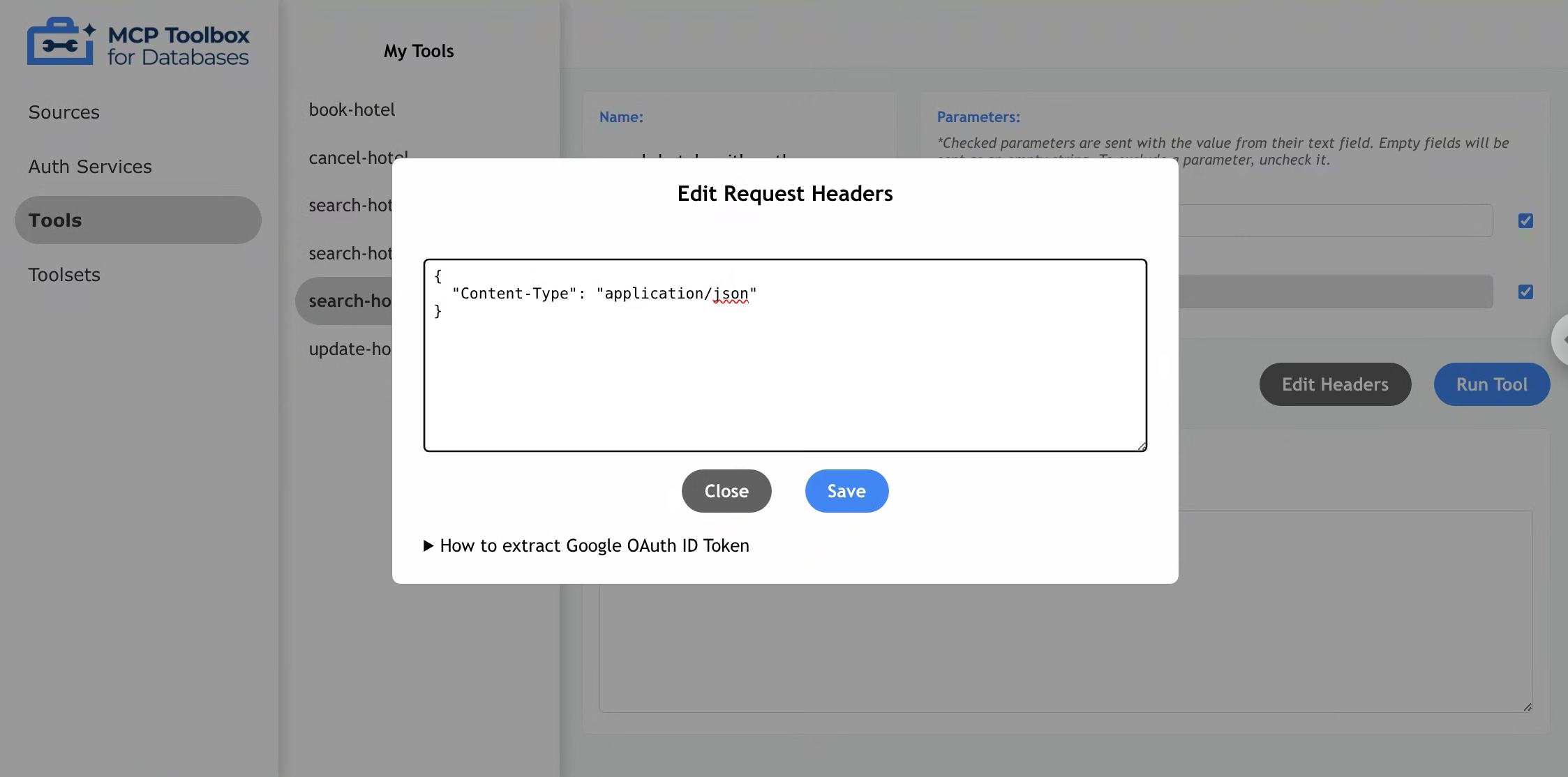

To edit headers, press the “Edit Headers” button to display the header modal. Within this modal, users can make direct edits by typing into the header’s text area.

Toolbox UI validates that the headers are in correct JSON format. Other header-related errors (e.g., incorrect header names or values required by the tool) will be reported in the Response section after running the tool.

Google OAuth

Currently, Toolbox supports Google OAuth 2.0 as an AuthService, which allows tools to utilize authorized parameters. When a tool uses an authorized parameter, the parameter will be displayed but not editable, as it will be populated from the authentication token.

To provide the token, add your Google OAuth ID Token to the request header using the “Edit Headers” button and modal described above. The key should be the name of your AuthService as defined in your tool configuration file, suffixed with _token. The value should be your ID token as a string.

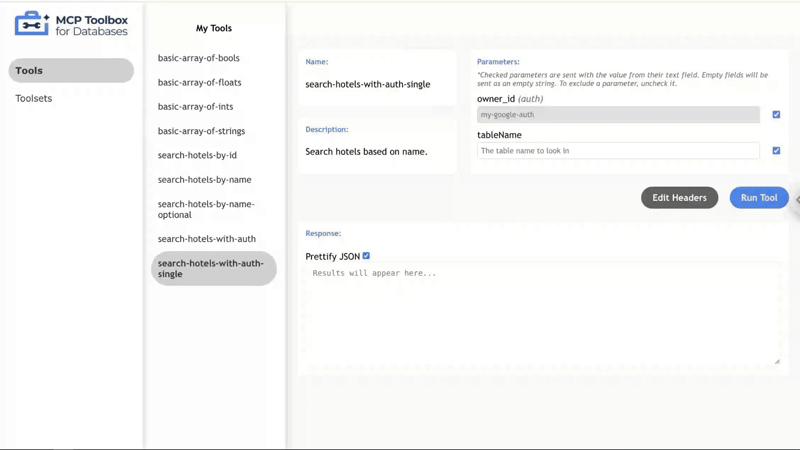

1. Select a tool that requires authenticated parameters
2. The auth parameter’s text field is greyed out. This is because it cannot be entered manually and will be parsed from the resolved auth token
3. To update request headers with the token, select “Edit Headers”
4. (Optional) If you wish to manually edit the header, checkout the dropdown “How to extract Google OAuth ID Token manually” for guidance on retrieving ID token
5. To edit the header automatically, click the “Auto Setup” button that is associated with your Auth Profile
6. Enter the Client ID defined in your tools configuration file
7. Click “Continue”
8. Click “Sign in With Google” and login with your associated google account. This should automatically populate the header text area with your token
9. Click “Save”
10. Click “Run Tool”

{
  "Content-Type": "application/json",
  "my-google-auth_token": "YOUR_ID_TOKEN_HERE"
}

Interactive Tools (MCP Apps)

Toolbox UI supports rendering interactive visual interfaces for tools configured with MCP Apps resources.

Identifying App Tools

Tools configured with an associated UI resource (ui.resource) display an APP badge next to their name in the tool list. Clicking on an app tool loads both the standard tool invocation form and the embedded interactive UI.

Sandboxed UI Rendering

When an app tool is selected:

1. Toolbox UI retrieves the configured HTML UI resource via resources/read.
2. The UI is mounted inside a sandboxed <iframe> with strict isolation policies.
3. The playground acts as an MCP Apps (SEP-1865) host, completing the initialization handshake (ui/initialize and ui/notifications/initialized).

Executing App Tools and Live Updates

When you click “Run Tool”:

1. The tool executes on the server and displays the raw JSON output in the response area.
2. The structured result is simultaneously delivered to the interactive app via the ui/notifications/tool-result postMessage notification.
3. The embedded web application updates in real time to visualize the tool result.

Interactive apps can also invoke tools directly on the server by sending tools/call JSON-RPC requests to the host bridge, or adjust container height dynamically via ui/notifications/size-changed.

App Controls

The app container provides interactive controls located in the app header:

• Fullscreen: Expands the application container to fill the browser window for in-depth data inspection.
• Reload: Reloads the iframe and re-establishes the host communication bridge.

Quickstart Example

You can test MCP Apps directly in Toolbox UI using the included generic example:

./toolbox --config examples/mcp-apps/tools.yaml --ui

Open http://localhost:5000/ui, select the get_sales_report tool (marked with the APP badge), and click “Run Tool” to see the interactive dashboard update with live SQLite data.

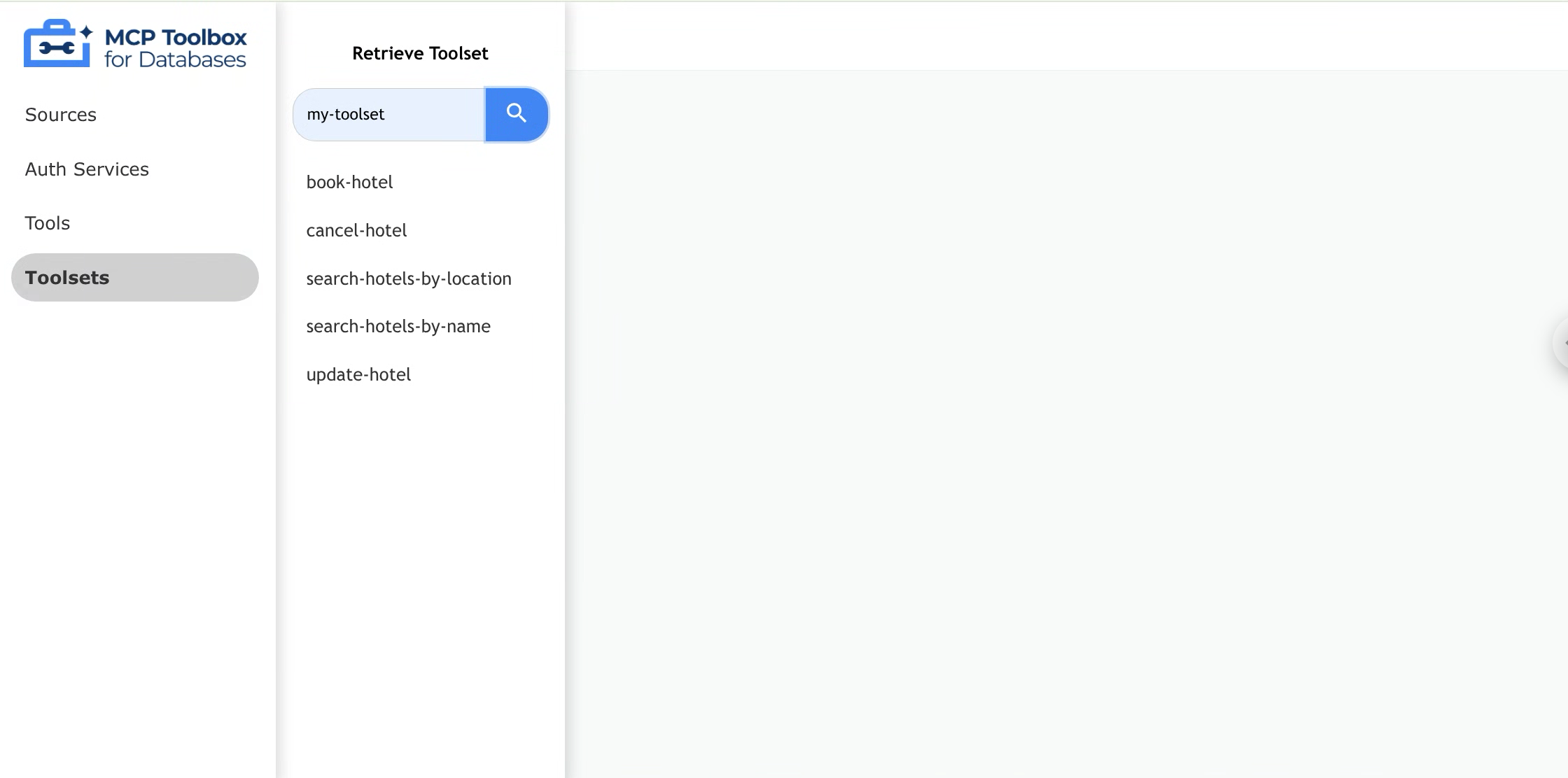

Navigating the Toolsets Page

Through the toolsets page, users can search for a specific toolset to retrieve tools from. Simply enter the toolset name in the search bar, and press “Enter” to retrieve the associated tools.

If the toolset name is not defined within the tools configuration file, an error message will be displayed.
